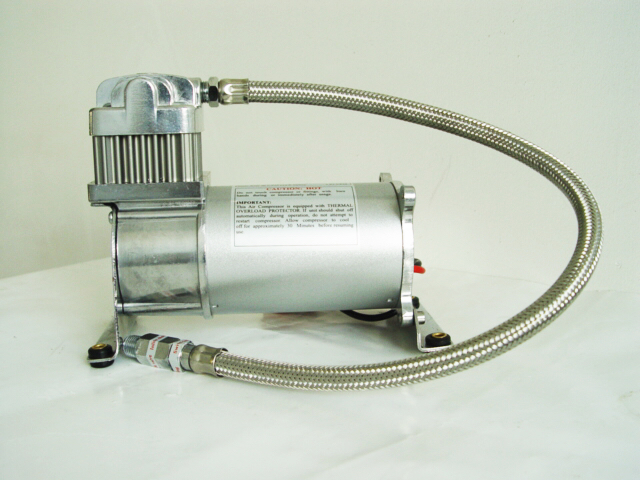

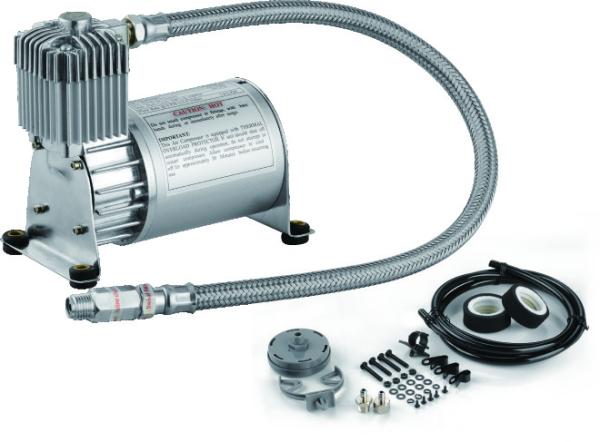

Chrom And Black Air Suspension Car Compressor For Suspension Offboard System

► Description

YF6390R is an installation type air suspension pump, which specifically applies to the professional equipment where needs fast-speed and extensive air, such as tire inflation, agriculture seeder, armaria, extracting oil and even in aircraft manufacturing corporation. Always integrated into on-board air system.
Commonly used must with air tanks in car tuning like off-road cars.The compressor is consist with an on-off pressure button. It automatically turns on and off when the pressure reaches the certain level. The part, air filter can be used in a remote situation when the environment changes. The compressor is furnished with a thermal overload protector which will turn off the unit if overheated.

► Used with

• Air tanks in different sizes
• Pneumatic system
• Air horns

► Our Advantages

1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust and explosion-proof
7 . Water resistant : IP 54

► SPECIFICATION

1.40CFM 12V 150PSI
1.50CFM 24V 150PSI

• 12 Volt
• Duty Cycle: 30% @ 100 PSI
• Max. Working Pressure: 150 PSI
• 12V Max. Amp Draw: 22 Amps
• 24V Max. Amp Draw: 12 Amps
• 3/8"NPT Inlet port
• Net Weight: 6.6 lbs
8"Lx4"Wx6.45"H

► PERFORMANCE DATA 12V

► RECOMMENDED TANK
TANK FILL DATA 12V

2.0 Gallon Tank
0 to 150 psi 3 min 55 sec
120 to 150 psi 50 sec

► PERFORMANCE DATA 24V

Yuyao City Yurui Electrical Appliance Co . , Ltd . ( Yuyo City Yufeng Electrial Appliance Factory ) located in a beautiful harbor city --- Ningbo , is a professional manufacturer , offering a series of AC/ DC oil-less air compressors and car using vacuum cleaners .

Yurui Electrical Appliance Co . , Ltd has long been importing the ISO9001 quality management system and also be granted with various certificates such as TUV , EMC , CE from Germany , CSA , UL from North America , NOM from South America and so on so forth .

The permanent magnet motor , independent R&D produced , has been worldwide used in Auto Industry , such as AC / DC air compressors / pump , car used vacuum cleaner and other products , Military Aerospace area , Oil Drilling , Mechanical Industry and Agriculture Production . Yurui primarily focuses on high-end market and also achieved success in car safety, air suspension system , air horn , pneumatic door , pneumatic door , car clutch and other places.

The R&D department mainly works on upgrade and update the products . To be pioneering and innovative is the aim of R&D department. The company owns advanced production testing equipment. Plus, full automatic life detector system, motor dynamometer, compressor comprehensive test instrument are all available in the experiment center.

At present, we are actively seeking for corporation with different famous enterprises in various business to obtain a win-win situation and build a bright future. A warm welcome to domestic and foreign industries in different field, as well as domestic and foreign agent call or email for further cooperation business.
