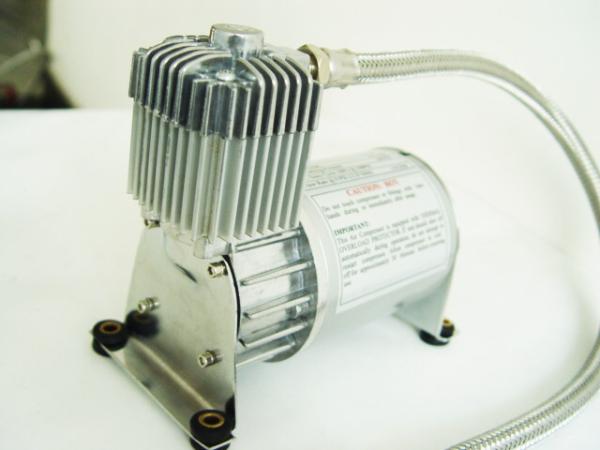

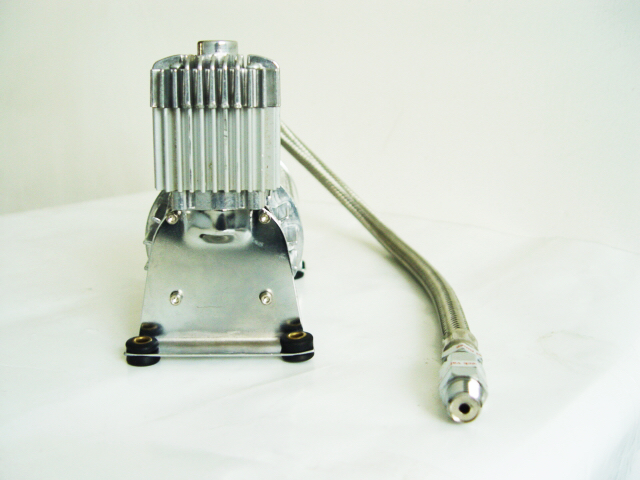

Yurui 6390R 150psi Pewter Single Fast Inflation Air Ride Suspension
Compressor Bags
► Description
YF6390R is an installation type air suspension pump, which
specifically applies to the professional equipment where needs
fast-speed and extensive air, such as tire inflation, agriculture
seeder, armaria, extracting oil and even in aircraft manufacturing
corporation. Always integrated into on-board air system.
Commonly used must with air tanks in car tuning like off-road
cars.The compressor is consist with an on-off pressure button. It
automatically turns on and off when the pressure reaches the
certain level. The part, air filter can be used in a remote
situation when the environment changes. The compressor is furnished
with a thermal overload protector which will turn off the unit if
overheated.
► Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
► Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust and explosion-proof
7 . Water resistant : IP 54
► SPECIFICATION
1.9CFM 150PSI
• 12 Volt
• Duty Cycle: 25% @ 100 PSI
• Max. Working Pressure:150 PSI
• Max. Amp Draw: 20 Amps
• Net Weight: 5.1 lbs
6.4"Lx3.5"Wx4.6"H
►How to guarantee your after sales service?
1. We check every item’s quality during the production
2. Recheck the products before shipment to ensure our packaging in
good condition.
3. Track and receive feedback from our customer.
►What will you do for the customer’s complaint?
We will response quickly to our client within 24 hours, every issue
will be highly focused on.
► PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 |
| AMPS | 11 | 17 | 20 | 18 |
| CFM | 1.9 | 1.5 | 1.0 | 0.7 |
| LPM | 53 | 42 | 28 | 20 |
| BAR | 0 | 3 | 6 | 10 |
► RECOMMENDED TANK
TANK FILL DATA
1.0 Gallon Tank
0 to 140 psi 1 min 28 sec
100 to 140 psi 30 sec
♦ DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated
in a given time period at 100PSI and a standard ambient temperature
of 72◦F. Duty cycle is commonly expressed in percentage format as:
Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F
|
