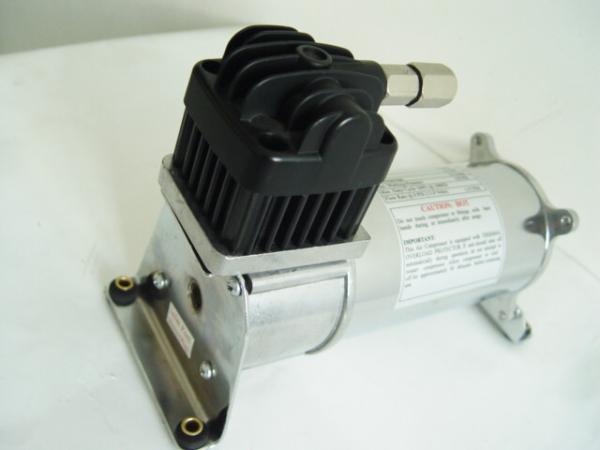

Yurui 6463R Black And Silver 150psi Air Ride Suspension Compressor
Stainless Load Hose
►Description
YF6463R is an installation type air suspension pump, which
specifically applies to the professional equipment where needs
fast-speed and extensive air, such as tire inflation, agriculture
seeder, armaria, extracting oil and even in aircraft manufacturing
corporation. Always integrated into on-board air system.
Commonly used must with air tanks in car tuning like off-road
cars.The compressor is consist with an on-off pressure button. It
automatically turns on and off when the pressure reaches the

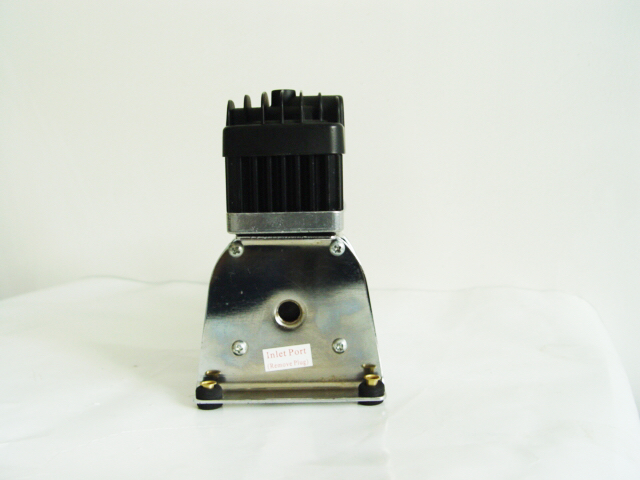

certain level. The part, air filter can be used in a remote
situation when the environment changes. The compressor is furnished
with a thermal overload protector which will turn off the unit if
overheated.
►Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
►Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust and explosion-proof
7 . Water resistant IP 54
►To which places you have exported?
America, Europe, South Asia, and so on.
How about your delivery time?
20-30 working days after we received your deposit.
►How to guarantee your after sales service?
1. We check every item’s quality during the production
2. Recheck the products before shipment to ensure our packaging in
good condition.
3. Track and receive feedback from our customer.
►SPECIFICATION
2.04CFM 150PSI
• 12 Volt
• Duty Cycle: 30% @ 100 PSI
• Max. Working Pressure: 150 PSI
• 12V Max. Amp Draw: 23 Amps
• Net Weight: 7.72 lbs
9.45"Lx4"Wx6.45"H
►PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 |
| AMPS | 13 | 19 | 22 | 21 |
| CFM | 2.04 | 1.48 | 1.2 | 0.77 |
| LPM | 58 | 42 | 34 | 22 |
| BAR | 0 | 3 | 6 | 10 |
► RECOMMENDED TANK
TANK FILL DATA
2.0 Gallon Tank
0 to 150 psi 2 min 15 sec
120 to 150 psi 45sec
♦ DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated
in a given time period at 100PSI and a standard ambient temperature
of 72◦F. Duty cycle is commonly expressed in percentage format as:
Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F
|
