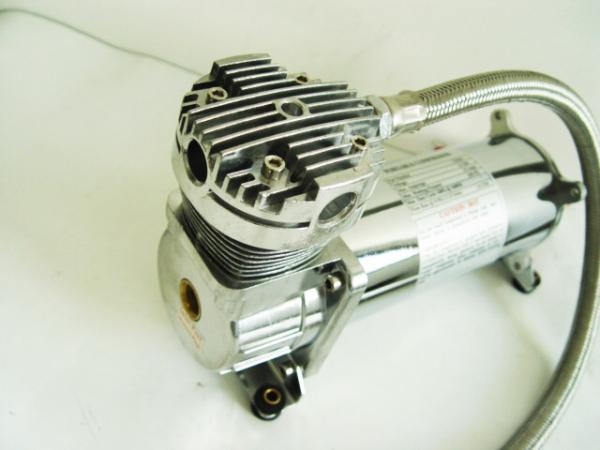

Yurui 6456R Black Or Silver 200psi 12V Stainless Lead Hose Air Ride
Suspension Compresssor
► Description
YF6456R is an installation type air suspension pump, which
specifically applies to the professional equipment where needs
fast-speed and extensive air, such as tire inflation, agriculture
seeder, armaria, extracting oil and even in aircraft manufacturing
corporation.
It is commonly used with air tanks in car tuning like off-road
cars.The compressor is consist with an on-off pressure button. It
will automatically turn on and off when the pressure reaches the
certain level. The part, air filter can be used in a remote
situation. One thing needed to bring out is that this product is
very popular in the USA and Brazil.
► Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
► Our Advantages
1 . One year warranty
2 . Competitive price among manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Water proof : Can work in the water for 2 hours
7 . Anti-dust and explosion-proof
► SPECIFICATION
1.8CFM 200PSI
• 12 Volt
• Duty Cycle: 100% @ 100 PSI
• Duty Cycle: 50% @ 200 PSI
• Max. Working Pressure: 200 PSI
• 12V Max. Amp Draw: 23 Amps
• 3/8"NPT Inlet port
• Net Weight: 11 lbs
11"Lx4"Wx6.55"H
►PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 | 200 |
| AMPS | 11 | 17 | 21 | 22 | 19 |
| CFM | 1.8 | 1.34 | 1.05 | 0.74 | 0.56 |
| LPM | 51 | 38 | 30 | 21 | 16 |
| BAR | 0 | 3 | 6 | 10 | 14 |
► RECOMMENDED TANK
TANK FILL DATA
2.5 Gallon Tank
0 to 200 psi 4 min 58 sec
150 to 200 psi 1 min 50 sec
5.0 Gallon Tank
0 to 200 psi 10 min 10 sec
150 to 200 psi 2 min 50 sec
►About us:
We only produce & export the lelatively high-end products to the
world. We have gained acceptance by many countries’s friends, we
have distributors in USA Austral, Russia, Poland Germany and so on.
The quality is most we focus on, I think the best quality is the
main reason we can survive so long time, not only because we
strictly control the quality in the production, but also we check
the quality after the production among the ready goods.
Any kind of inspection is welcomed, we welcome you all come and
have a look.
♦ DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated
in a given time period at 100PSI and a standard ambient temperature
of 72◦F. Duty cycle is commonly expressed in percentage format as:
Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72
|
