Black And Silver Steel Onboard Air Systems Air Compressor With Tank
12V For Fast Inflation Heavy Duty For Car Tuning
► Description
YuRui's Medium Duty Onboard Air System is a pre-packaged compressed
air solution that provides a 33% duty cycle YF6455BR compressor 2.5
gallon air tank, and all components needed to install basic
vehicle-based pneumatics.
► Our Advantages
1 . Fast inflation and low noise
2 . One year warranty
3 . Competitive price than other manufactures
4 . Anti-dust
5 . Water resistant : IP 67, working in the water for 2 hours
YF7006
2.18 CFM 150 PSI
P/N 7006CE

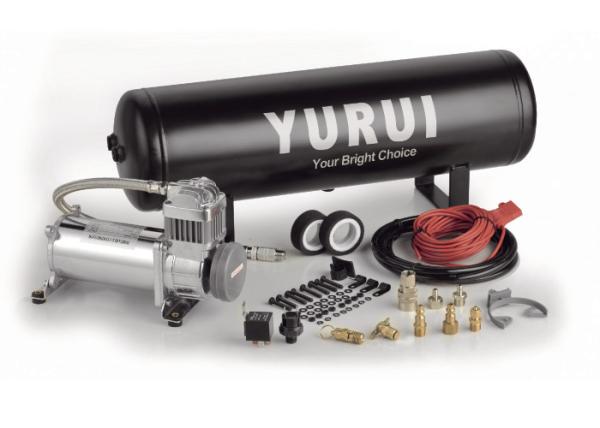

► PARTS INCLUDED
YF6455BR Air Compressor
12 Volt
Duty Cycle:33%@100 PSI
System Max Working Pressure:150 PSI
Max Amp Draw: 25 Amps
2.5 Gallon Air Tank
Accessory Airline
Pressure Switch(120PSI on 150 PSI off)
40Amp Relay
1/4”NPT Drain Cock
1/4”NPT Quick Connect Stud(F)
1/4”NPT Quick Connect Coupler(M)
1/4”NPT 180 PSI Safety Valve
8ft Air Hose
20ft 12 Gauge Wire with Inline Fuse Holder
Electrical Connections
► PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 |
| CFM | 2.18 | 1.18 | 1.2 | 0.84 |
| AMPS | 15 | 23 | 24 | 25 |
| LPM | 62 | 42 | 34 | 24 |
| BAR | 0 | 3 | 6 | 10 |
► TANK FILL DATA
2.5 Gallon Tank
0 to 150 psi 2 min12 sec
120 to 150 psi 48 sec
►How about your delivery time?
20-30 working days after we received your deposit.
►How to guarantee your after sales service?
1. We check every item’s quality during the production
2. Recheck the products before shipment to ensure our packaging in
good condition.
3. Track and receive feedback from our customer.
►What will you do for the customer’s complaint?
We will response quickly to our client within 24 hours, every issue
will be highly focused on.
► DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated
in a given time period at 100PSI and a standard ambient temperature
of 72◦F. Duty cycle is commonly expressed in percentage format as:
Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
