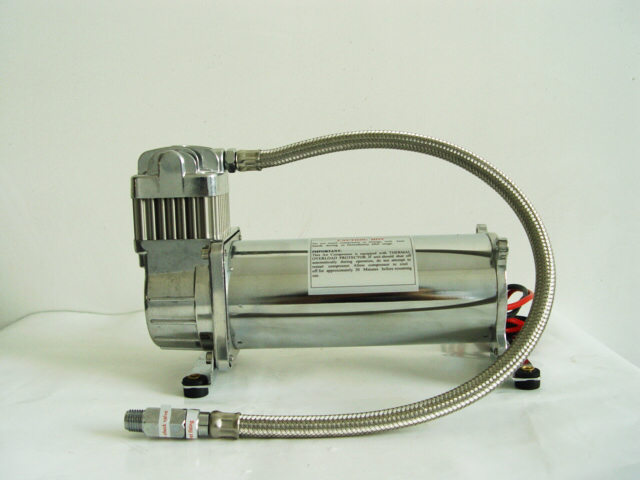

Portable Chrome Air Suspension Compressor 12V 40A For Off Road
Vehicles
► Description
YF6455AR is an installation type air suspension pump, which
specifically applies to the professional equipment where needs
fast-speed and extensive air, such as tire inflation, agriculture
seeder, armaria, extracting oil and even in aircraft manufacturing
corporation. Always integrated into on-board air system.
Commonly used must with air tanks in car tuning like off-road
cars.The compressor is consist with an on-off pressure button. It
automatically turns on and off when the pressure reaches the
certain level. The part, air filter can be used in a remote
situation when the environment changes.
► Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
► Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust
7 . Water resistant : IP 67, working in the water for 2 hours
►SPECIFICATION
1.75CFM 200PSI
• 12 Volt
• Duty Cycle: 100% @ 100 PSI
• Duty Cycle: 50% @ 200 PSI
• Max. Working Pressure: 200 PSI
• 12V Max. Amp Draw: 23 Amps
• 1/4"NPT Inlet port
• Net Weight: 10.5lbs
11"Lx4"Wx6.5"H
► PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 150 | 200 |
| AMPS | 11 | 17 | 21 | 22 | 19 |
| CFM | 1.8 | 1.34 | 1.05 | 0.74 | 0.56 |
| LPM | 51 | 38 | 30 | 21 | 16 |
| BAR | 0 | 3 | 6 | 10 | 14 |
►How to guarantee your after sales service?
1. We check every item’s quality during the production
2. Recheck the products before shipment to ensure our packaging in
good condition.
3. Track and receive feedback from our customer.
► RECOMMENDED TANK
TANK FILL DATA
2.5 Gallon Tank
0 to 200 psi 4 min 58 sec
150 to 200 psi 1 min 50 sec
♦ DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated
in a given time period at 100PSI and a standard ambient temperature
of 72◦F. Duty cycle is commonly expressed in percentage format as:
Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
