Durable Air Ride Suspension Pump 12V for Car Tuning in Onboard Air
System
► Description

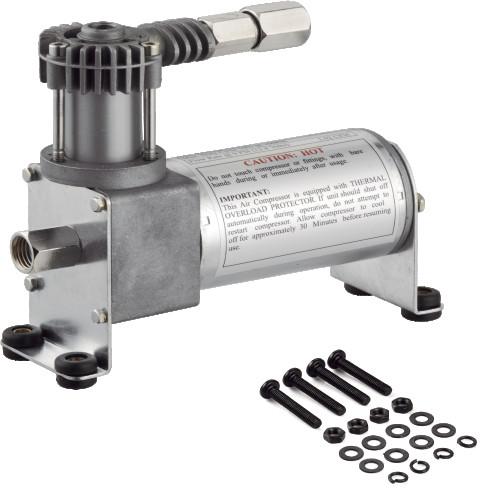

YF6273R is an installation type air suspension pump, which
specifically applies to the professional equipment where needs
fast-speed and extensive air, such as tire inflation, agriculture
seeder, armaria, extracting oil and even in aircraft manufacturing
corporation. Always integrated into on-board air system.
Commonly used must with air tanks in car tuning like off-road
cars.The compressor is consist with an on-off pressure button. It
automatically turns on and off when the pressure reaches the
certain level. The part, air filter can be used in a remote
situation when the environment changes.
► Used with
• Air tanks in different sizes
• Pneumatic system
• Air horns
►Company information:
Yuyao Yurui Electrical is a professional factory dealing in the
suspension air compressor, inflator, car fan vacuum cleaners,
heater fans and other car accessories. With more than 15 years
history, we have our own inspection team that is around 15 persons
and engineers 3 persons. That controls the quality and explore new
products.
► Our Advantages
1 . One year warranty
2 . Competitive price than other manufactures
3 . Portable to carry with
4 . Fast inflation and low noise
5 . Can be pumped more than 20 , 000 times
6 . Anti-dust
7 . Water resistant : IP 54
► SPECIFICATION
1.02CFM 120PSI
• 12 Volt
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 120 PSI
• Max. Amp Draw: 11Amps
• Inline Check Valve
• Net Weight: 2.41 lbs
5.9"Lx2.1"Wx4.5"H
► PERFORMANCE DATA
| PSI | 0 | 40 | 90 | 130 |
| AMPS | 8 | 9 | 10 | 9 |
| CFM | 1.02 | 0.6 | 0.45 | 0.35 |
| LPM | 29 | 17 | 13 | 10 |
| BAR | 0 | 3 | 6 | 10 |
► RECOMMENDED TANK
TANK FILL DATA
0.5 Gallon Tank
0 to 120 psi 1 min 26 sec
90 to 200 psi 28 sec
♦DUTY CYCLE REFERENCE CHART
| Duty Cycle: 100PSI @ 72◦F | Max. Run Time / Min. Rest Time |
Duty cycle refers to the amount of time compressor can be operated
in a given time period at 100PSI and a standard ambient temperature
of 72◦F. Duty cycle is commonly expressed in percentage format as:
Compressor on time / (on time + off time)= Duty Cycle% |
| 9% Duty Cycle | 3 Min. On / 30 Min. Off |
| 10% Duty Cycle | 3 Min. On / 30 Min. Off |
| 15% Duty Cycle | 6 Min. On / 30 Min. Off |
| 20% Duty Cycle | 8 Min. On / 30 Min. Off |
| 25% Duty Cycle | 10 Min. On / 30 Min. Off |
| 30% Duty Cycle | 13 Min. On / 30 Min. Off |
| 33% Duty Cycle | 15 Min. On / 30 Min. Off |
| 40% Duty Cycle | 20 Min. On / 30 Min. Off |
| 100% Duty Cycle | Continous Duty @ 100PSI @ 72◦F |
