Fast Inflation Portable Durable Chrome Steel 12V Air Ride Suspension Compressor

► Description

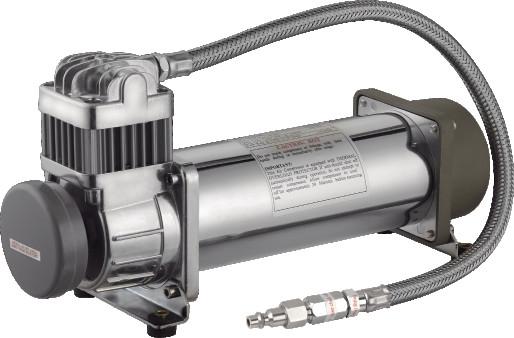

YF6455AH is a hardmount compressor that pumps a massive 2.18 CFM flow at zero PSI head pressure. The 400H comes with a built-in, moisture resistant ON/OFF power switch. Features include a heavy duty stainless steel leader hose with a 1/4” quick connect stud for hookup to a coil hose and insulated wiring for simple installation.

► Used with

• Air tanks in different sizes

• Pneumatic system

• Air horns

► Our Advantages

1 . One year warranty

2 . Competitive price than other manufactures

3 . Portable to carry with

4 . Fast inflation and low noise

5 . Can be pumped more than 20 , 000 times

6 . Anti-dust and explosion-proof

7 . Water resistant : IP 67, working in the water for 2 hours

► SPECIFICATION

1.75CFM 150PSI

• 12 Volt

• Duty Cycle: 100% @ 100 PSI

• Duty Cycle: 50% @ 200 PSI

• Max. Working Pressure: 200 PSI

• 12V Max. Amp Draw: 23 Amps

• 1/4"NPT Inlet port

• Net Weight: 11 lbs

12"Lx4"Wx6.55"H

►PERFORMANCE DATA

► RECOMMENDED TANK

TANK FILL DATA

2.5 Gallon Tank

0 to 150 psi 4 min 58 sec

120 to150 psi 50 sec

♦ DUTY CYCLE REFERENCE CHART

Yuyao City Yurui Electrical Appliance Co . , Ltd . ( Yuyo City Yufeng Electrial Appliance Factory ) located in a beautiful harbor city --- Ningbo , is a professional manufacturer , offering a series of AC/ DC oil-less air compressors and car using vacuum cleaners .

Yurui Electrical Appliance Co . , Ltd has long been importing the ISO9001 quality management system and also be granted with various certificates such as TUV , EMC , CE from Germany , CSA , UL from North America , NOM from South America and so on so forth .

The permanent magnet motor , independent R&D produced , has been worldwide used in Auto Industry , such as AC / DC air compressors / pump , car used vacuum cleaner and other products , Military Aerospace area , Oil Drilling , Mechanical Industry and Agriculture Production . Yurui primarily focuses on high-end market and also achieved success in car safety, air suspension system , air horn , pneumatic door , pneumatic door , car clutch and other places.

The R&D department mainly works on upgrade and update the products . To be pioneering and innovative is the aim of R&D department. The company owns advanced production testing equipment. Plus, full automatic life detector system, motor dynamometer, compressor comprehensive test instrument are all available in the experiment center.

At present, we are actively seeking for corporation with different famous enterprises in various business to obtain a win-win situation and build a bright future. A warm welcome to domestic and foreign industries in different field, as well as domestic and foreign agent call or email for further cooperation business.
